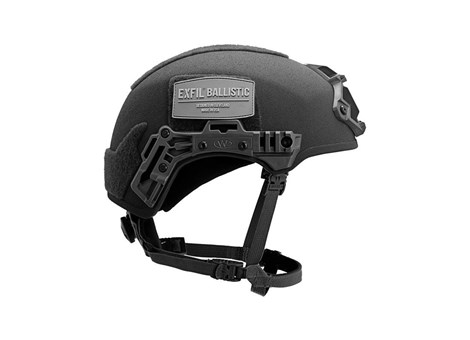

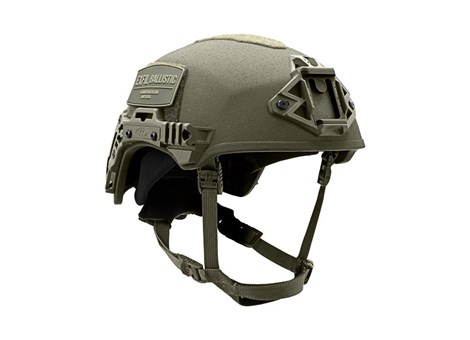

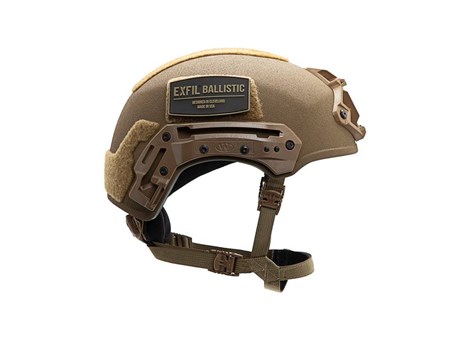

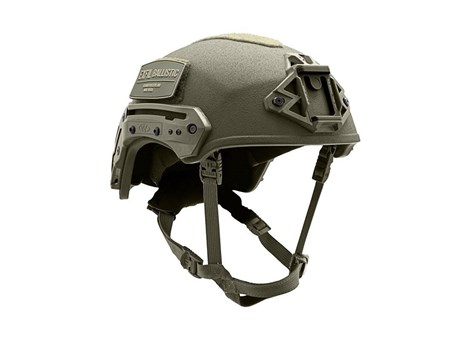

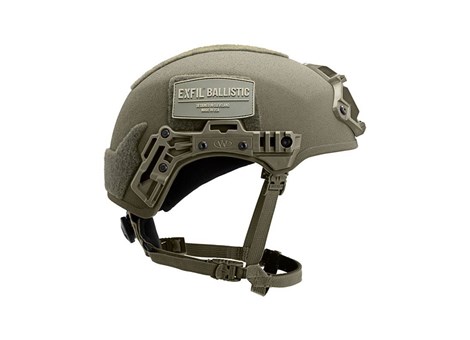

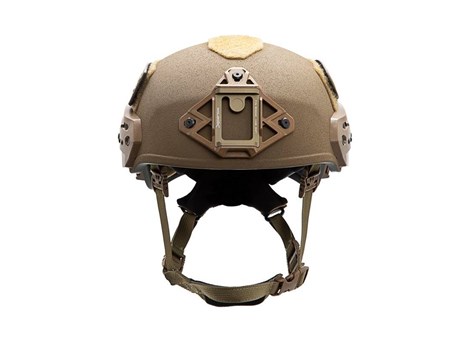

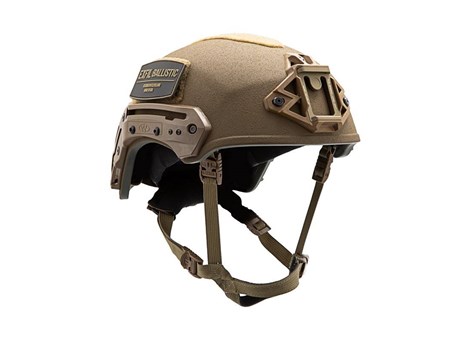

Team Wendy® EXFIL® Ballistic Helmet

EXFIL® Ballistic Features

Team Wendy® EXFIL® Ballistic

EXFIL Ballistic Technical Data Sheet Page 1

EXFIL® Ballistic Technical Data Sheet | Front Page

EXFIL Ballistic Technical Data Sheet Page 2

EXFIL® Ballistic Technical Data Sheet | Back Page

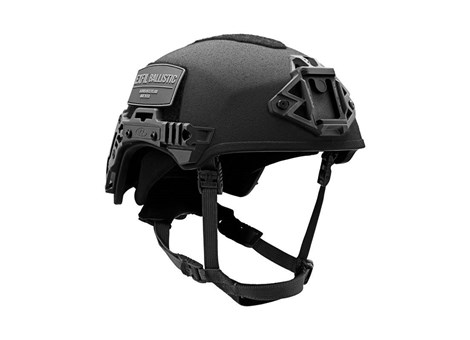

EXFIL® Ballistic | Black | Front

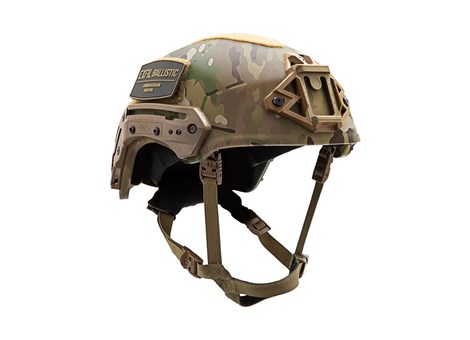

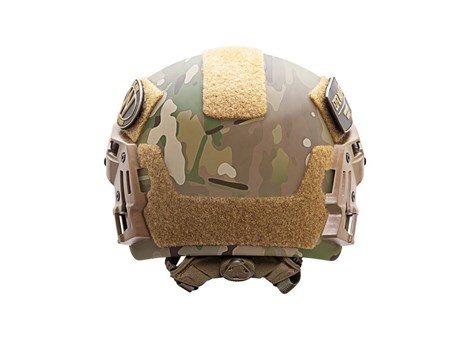

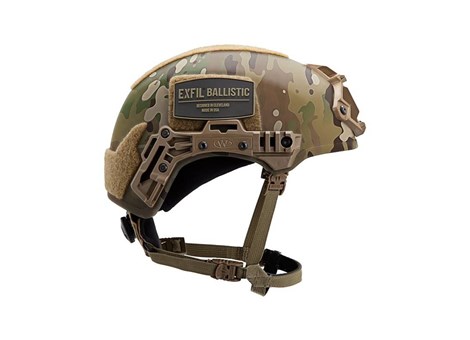

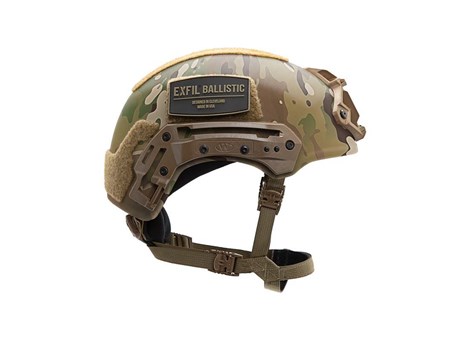

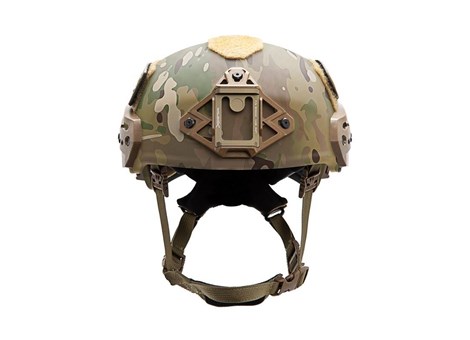

EXFIL® Ballistic | MultiCam® | Angle

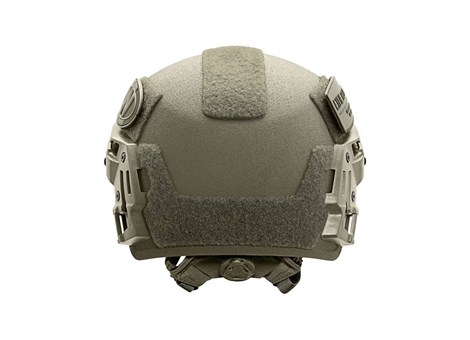

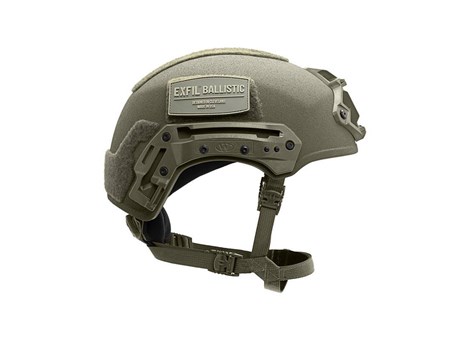

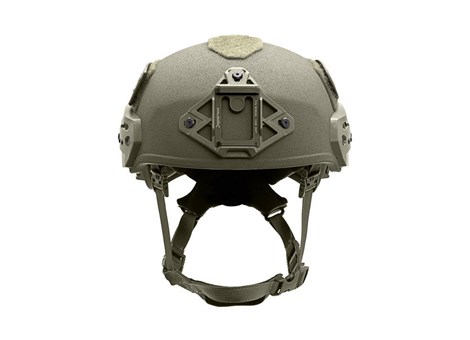

EXFIL® Ballistic | Ranger Green | Rear

EXFIL® Ballistic | Liner/Interior

$1,449.00MAP Pricing
Available Colors
- Black

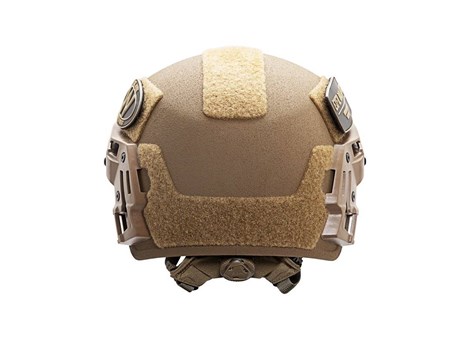

- Coyote Brown
- MultiCam® (+$63.00)
- Ranger Green
Size
- Size 1 (M/L)
- Size 2 (XL)
Left Eye Dominant (LED) Retention
- No
- Yes
Quantity
Team Wendy® EXFIL® Rail 3.0 Ballistic added to cartHere's a few other products that may interest you.
View my cartLogin
Team Wendy® EXFIL® Rail 3.0 Ballistic added to wishlistHere's a few other products that may interest you.
View my wishlistLogin
CURRENT LEAD TIME FOR EXFIL BALLISTIC HELMET ORDERS IS 10 WEEKS. ORDERS WILL SHIP SOONER IF AVAILABLE.

Please check our new EPIC line of ballistic helmets for shorter lead times.

Product Description

Ballistic performance meets NIJ Level III-A (according to NIJ STD 0106.01/0108.01) standard.
Features a hybrid composite shell for increased strength and a unique geometry for optimal fit.
Innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing comfort and stability.
Zorbium® foam liner protects against impact and allows for an overhead communications headband.
Customizable fit is achieved through a set of moveable comfort pads.
A lanyard-compatible Wilcox® shroud* secures any standard NVG mount.
EXFIL® Rail 3.0 accessory mounting system is 25% lighter than the previous EXFIL® Rail 2.0 system and is compatible with all EXFIL® accessories.
Two (2) 5-Slot Magpul® MOE® picatinny rails with mounting hardware and a shock cord kit are included with helmet.

*NOTE: While the Wilcox® W shroud comes standard with the EXFIL® Ballistic, the NVG mount/interface required for attaching night vision devices to the helmet, such as the Wilcox® G24, is not included.

Product comparison

EXFIL® Ballistic
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.6 lbs (1.18kg) for size 1, 2.75 lbs (1.25kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® W shroud.
EXFIL® Ballistic SL
- Shell Technology
  Proprietary Hybrid Composite Shell
- Weight
  2.22 lbs (1.01kg) for size 1, 2.31 lbs (1.05kg) for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s). Backface Deformation: 9mm FMJ RN @ 1195 ft/s (365 m/s). BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
- Liner System
  Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Lanyard compatible 3-hole Wilcox® shroud.
EXFIL® Carbon
- Shell Technology
  Carbon Fiber Shell
- Weight
  Size 1 is 1.66 lbs (0.75 kg). Size 2 is 1.68 lbs (0.76 kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Exceeds ACH Blunt Impact requirement per AR/PD10-02, 16Dec'13 - average below 72G across all impacts and temperatures. Also exceeds shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes eight adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Wilcox® W shroud for NVG mounts, compatible with retractable lanyard system.
EXFIL® LTP
- Shell Technology
  Polycarbonate Copolymer Shell
- Weight
  Both sizes weigh 1.59 lbs (.72kg). Complete system weight includes the helmet shell, shroud, accessory rails, impact liner and retention system.
- Performance
  Meets shock absorption requirements of BS EN 1385:2012 (Whitewater).
- Liner System
  Zorbium® Foam Liner features moisture wicking fabric and includes six adjustable comfort pads.
- Retention System
  Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- Shroud
  Integrated machined aluminum mounting plate for NVG mounts.

Product Features

Boltless CAM FIT™ Retention System
- Utilizes BOA® Fit System for optimized stability and fit
- Cam Lock sliders for one-handed adjustment and secure fit
- Left Eye Dominant (LED) option also available
Zorbium® Foam Liner
- 16 customizable comfort pads in two thicknesses
- Removable center pad to easily accommodate overhead comms
- Replacement comfort pads available for purchase
NVG Shroud
- 3-hole Wilcox® W shroud
- Lightweight aerospace grade aluminum mount interface
- Compatible with Wilcox® NVG lanyard
- Compatible with most standardized NVG mount baseplates
EXFIL® Ballistic Accessory Rail System
- Compatible with all standard EXFIL® accessories
- Allows installation of the EXFIL® Ballistic Visor and the EXFIL® Face Shield
- Includes two Magpul® MOE® Picatinny-style rails and mounting hardware

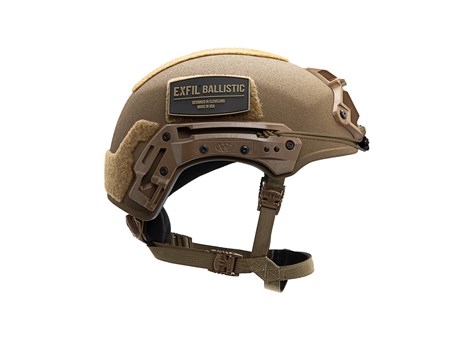

- Includes shock cord kit for stabilizing NVG

Performance

Ballistic Performance

NIJ Level III-A (according to NIJ STD 0106.01/0108.01)

Fragment Performance

17gr V50 ≥ 2400 ft/s (731 m/s)

Backface Deformation

9mm FMJ RN @ 1400 ft/s (425 m/s)
BFD < 25.4 mm all locations

Blunt Impact Performance

Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02) - average below 70G across all impacts and temperatures

Weight

Size	Complete System	Shell
Size 1 (M/L)	2.6 lbs (1.18 kg)	1.75 lbs (0.79 kg)
Size 2 (XL)	2.75 lbs (1.25 kg)	1.8 lbs (0.84 kg)

Complete system weight includes helmet shell, accessory rails, impact liner and retention system.

Sizing

Size	Head Circumference (in)	Head Circumference (cm)	Hat Size
Size 1 (M-L)	20.5 – 23.5	52 – 60	6 5/8 – 7 1/2
Size 2 (XL)	23 – 24.75	58 – 63	7 3/8 – 7 7/8

PLEASE NOTE: If you are in between sizes, we recommend going up to the larger size. You can customize the fit with the comfort pads that are included with your helmet purchase. If more pads are needed, we sell additional comfort pad sets.

Sizing with comfort pads installed:
