CAM FIT™ Combat Helmet Retention System

CAM FIT™ Retention System Installed | Rear View

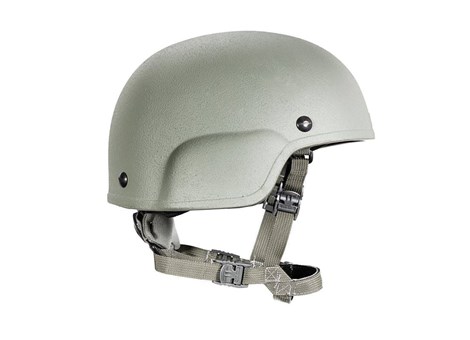

CAM FIT™ Retention System Installed | Side View

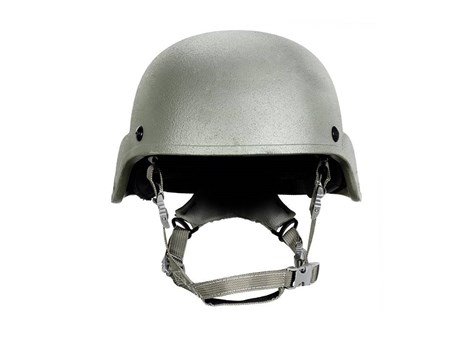

CAM FIT™ Retention System Installed | Front View

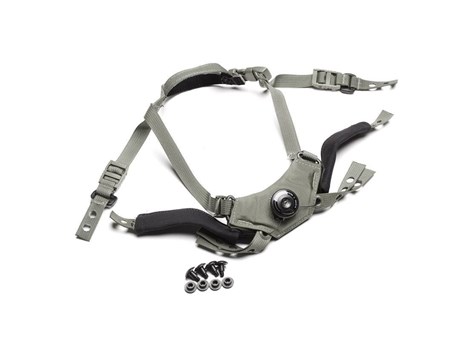

CAM FIT™ Retention System | Foliage Green

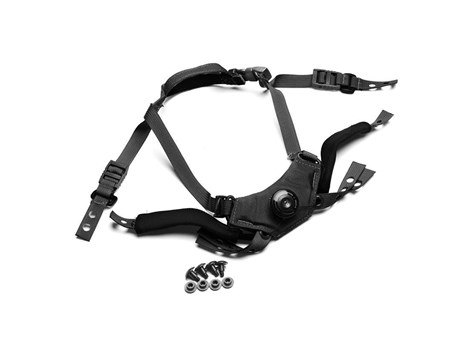

CAM FIT™ Retention System | Black

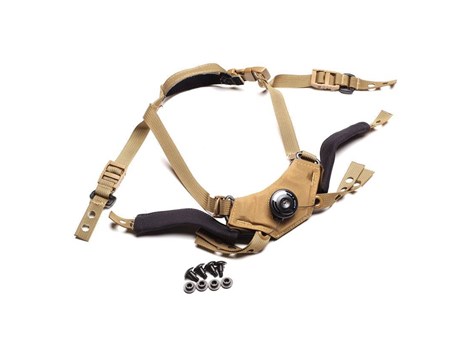

CAM FIT™ Retention System | Coyote Brown

CAM FIT™ Retention System Technical Data Sheet

$151.97MAP Pricing
Available Colors
- Coyote Brown
- Foliage Green
- Black
Size
- Size 1 (M/L)
- Size 2 (XL)
Left Eye Dominant (LED) Retention
- No
- Yes
Shell Type
- USMC ECH (+$11.83)
- ACH/MICH & High-Cut (FAST, AirFrame™, etc. with NO rails)
Quantity
Team Wendy® CAM FIT™ Retention System added to cartHere's a few other products that may interest you.
View my cartLogin
Team Wendy® CAM FIT™ Retention System added to wishlistHere's a few other products that may interest you.
View my wishlistLogin

Product Description

Utilizes Cam Lock sliders for one-handed adjustment and secure fit.
BOA® Fit System stabilizes the weight of the helmet by distributing a light, even pressure around the head.
Adjustment straps and chin cup designed for a close, comfortable fit to the wearer's face.
Asymmetric design keeps the buckle tucked smoothly along the jaw line while maintaining a snug, even feel around the chin cup.
Chin cup lining ensures maximum comfort and chafe-free wear at any temperature.
Also available in a left eye dominant (LED) option.

NOTE:

All CAM FIT™ Retention Systems ship complete with ballistic hardware. Included hardware may not be compatible with side rail systems; in these cases original hardware can be used or ARC rail hardware can be purchased.

Product comparison

CAM FIT™ H-Back Retention System
- Retention System Fit
  Features a minimalist H-style nape pad filled with soft Zorbium® foam and line with ultrasuede fabric.
- ChinStrap Adjustment
  Utilizes cam-lock sliders for one-handed adjustment and secure fit.
- Performance
  Compliant with ACH and ECH Static Pull Strength requirements
- Sizing
  M/L, XL
- Chin Cup Style
  Constructed of 5/8" inch nylon webbing. Ultra-suede chin-cup lining ensures a maximum comfort and chafe-free wear at any temperature
- Available in Left Eye Dominant?
  No
- Shell type compatibility
  ACH, MICH, TC2000 Ballistic Helmet styles and many other ballistic helmets with 4-point retention mounting holes
CAM FIT™ Retention System
- Retention System Fit
  The Boa® Closure System stabilizes the helmet by distributing pressure evenly around the head. The dial is integrated into an X-style nape pad filled with soft Zorbium® foam.
- ChinStrap Adjustment
  Utilizes cam-lock sliders for one-handed adjustment and secure fit. The Boa Closure System stabilizes the weight of the helmet by distributing it around the head.
- Performance
  Compliant with ACH and ECH Static Pull Strength requirements
- Sizing
  M/L, XL
- Chin cup Style
  Constructed of 5/8" inch nylon webbing. Ultra-suede chin-cup lining ensures a maximum comfort and chafe-free wear at any temperature
- Available in Left Eye Dominant?
  Yes
- Shell type compatibility
  ACH, MICH, FAST, Airframe™, LWH, PASGT and other ballistic helmets with 4-point retention mounting holes.
Standard Chinstrap
- Retention System Fit
  Traditional H-style nape pad lined with loop fabric.
- ChinStrap Adjustment
  Utilizes traditional webbing tension locks
- Performance
  Compliant with ACH and ECH Static Pull Strength requirements
- Sizing
  One size fits all
- Chin cup Style
  Constructed of 5/8" webbing with wicking fabric lining.
- Available in Left Eye Dominant?
  No
- Shell type compatibility
  ACH, MICH and other ballistic helmets with 4-point retention mounting holes.

Performance

Pull Strength Performance

Compliant with ACH and ECH Static Pull Strength requirements

* Independently tested in accordance to GL-PD-07-19 – 2007 Section 3.5.2.1, Static Pull Strength and DRAFT-ECH-ICEPG16-0001 – 2009 Section 3.6.3 Static Pull Strength

Sizing

Size	Face Circumference (in.)
M/L	26" - 29"
XL	27.5" - 32.5"
