CAM FIT™ H-Back Retention System

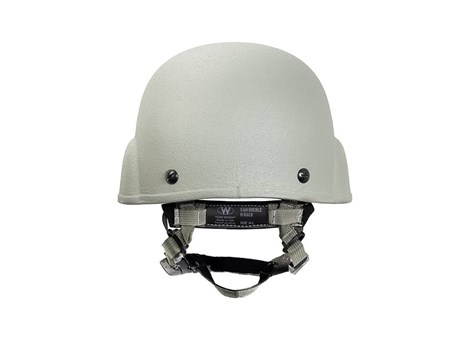

CAM FIT™ H-Back Retention Installed | Rear View

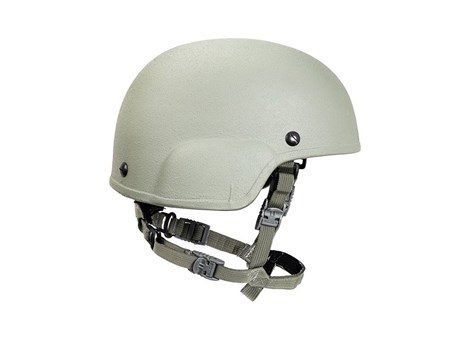

CAM FIT™ H-Back Retention Installed | Side View

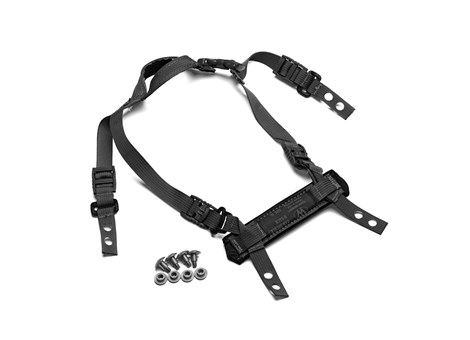

CAM FIT™ H-Back Retention | Black

CAM FIT™ H-Back Retention | Coyote Brown

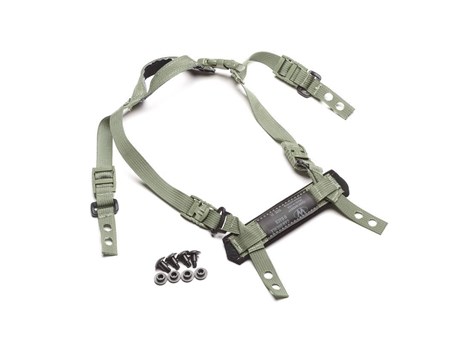

CAM FIT™ H-Back Retention | Foliage Green

CAM FIT™ H-Back Retention Technical Data System

$95.55MAP Pricing
Available Colors
- Black
- Coyote Brown
- Foliage Green
Size
- Size 1 (M/L)
- Size 2 (XL)
Shell Type
- ACH/MICH
- USMC ECH
Quantity
Team Wendy® CAM FIT™ H-Back Retention System added to cartHere's a few other products that may interest you.
View my cartLogin
Team Wendy® CAM FIT™ H-Back Retention System added to wishlistHere's a few other products that may interest you.
View my wishlistLogin

Product Description

Utilizes Cam Lock sliders which allow for one-handed adjustment and secure helmet fit.
Adjustment straps and chin cup have been designed for a close, comfortable fit to the wearer's face.
Asymmetric design keeps the buckle tucked smoothly along the jaw line while maintaining a snug, even feel around the chin cup.
Ultrasuede chin cup lining ensures maximum comfort and chafe-free wear at any temperature.

NOTE:

All CAM FIT™ H-back retention systems ship complete with hardware. Included hardware may not be compatible with side rail systems; in these cases original hardware can be used or ARC rail hardware can be purchased.

Product comparison

CAM FIT™ H-Back Retention System
- Retention System Fit
  Features a minimalist H-style nape pad filled with soft Zorbium® foam and line with ultrasuede fabric.
- ChinStrap Adjustment
  Utilizes cam-lock sliders for one-handed adjustment and secure fit.
- Performance
  Compliant with ACH and ECH Static Pull Strength requirements
- Sizing
  M/L, XL
- Chin Cup Style
  Constructed of 5/8" inch nylon webbing. Ultra-suede chin-cup lining ensures a maximum comfort and chafe-free wear at any temperature
- Available in Left Eye Dominant?
  No
- Shell type compatibility
  ACH, MICH, TC2000 Ballistic Helmet styles and many other ballistic helmets with 4-point retention mounting holes
CAM FIT™ Retention System
- Retention System Fit
  The Boa® Closure System stabilizes the helmet by distributing pressure evenly around the head. The dial is integrated into an X-style nape pad filled with soft Zorbium® foam.
- ChinStrap Adjustment
  Utilizes cam-lock sliders for one-handed adjustment and secure fit. The Boa Closure System stabilizes the weight of the helmet by distributing it around the head.
- Performance
  Compliant with ACH and ECH Static Pull Strength requirements
- Sizing
  M/L, XL
- Chin cup Style
  Constructed of 5/8" inch nylon webbing. Ultra-suede chin-cup lining ensures a maximum comfort and chafe-free wear at any temperature
- Available in Left Eye Dominant?
  Yes
- Shell type compatibility
  ACH, MICH, FAST, Airframe™, LWH, PASGT and other ballistic helmets with 4-point retention mounting holes.
Standard Chinstrap
- Retention System Fit
  Traditional H-style nape pad lined with loop fabric.
- ChinStrap Adjustment
  Utilizes traditional webbing tension locks
- Performance
  Compliant with ACH and ECH Static Pull Strength requirements
- Sizing
  One size fits all
- Chin cup Style
  Constructed of 5/8" webbing with wicking fabric lining.
- Available in Left Eye Dominant?
  No
- Shell type compatibility
  ACH, MICH and other ballistic helmets with 4-point retention mounting holes.

Performance

Pull Strength Performance

Compliant with ACH and ECH Static Pull Strength requirements

* Independently tested in accordance to GL-PD-07-19 – 2007 Section 3.5.2.1, Static Pull Strength and DRAFT-ECH-ICEPG16-0001 – 2009 Section 3.6.3 Static Pull Strength

Sizing

Size	Face Circumference (in.)
M/L	26 - 29
XL	27.5 - 35.5

The CAM FIT™H-Back Chinstrap is compatible with ACH, MICH, TC2000 series ballistic helmet styles and many other ballistic helmets with 4-point retention mounting holes. Size M/L fits a face circumference range of 26-29” (this size fits most ACH M, L, and some XL wearers). Size XL fits a face circumference range of 27.5-32.5”. Users have multiple set-up options depending on head and face circumference.

Resources

Marketing Materials
- CAM FIT™ Retention Systems Technical Data Sheet
